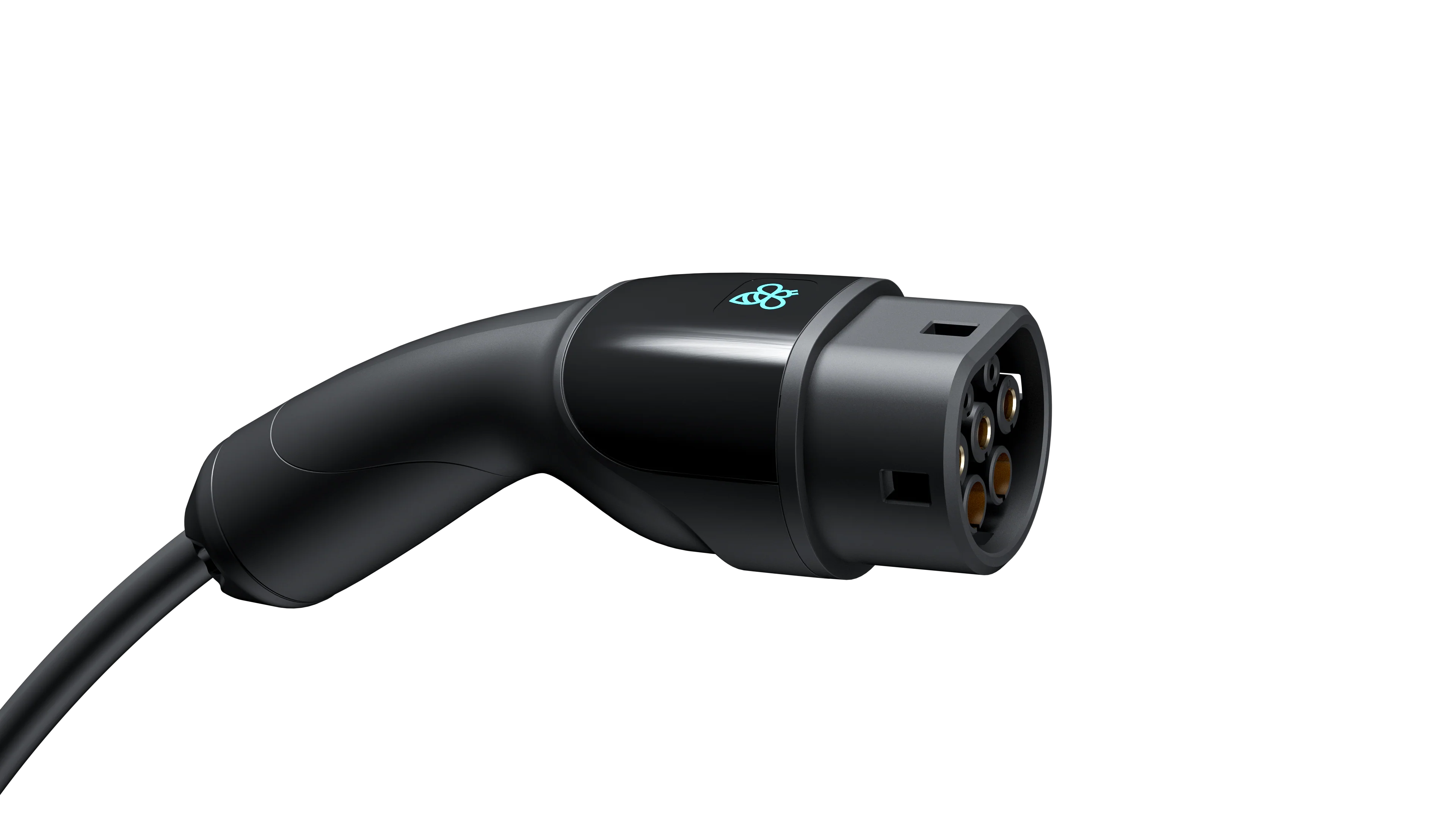

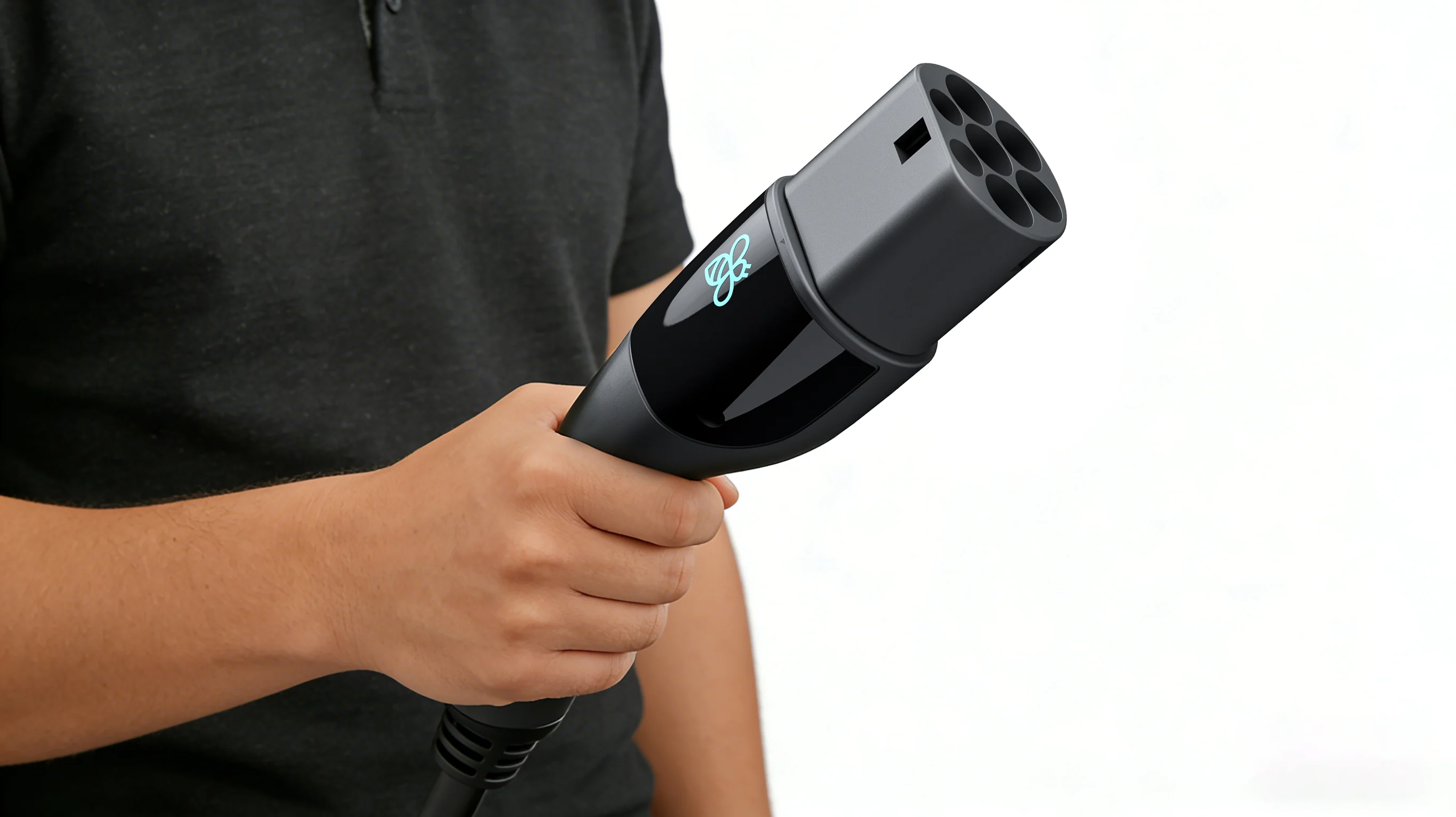

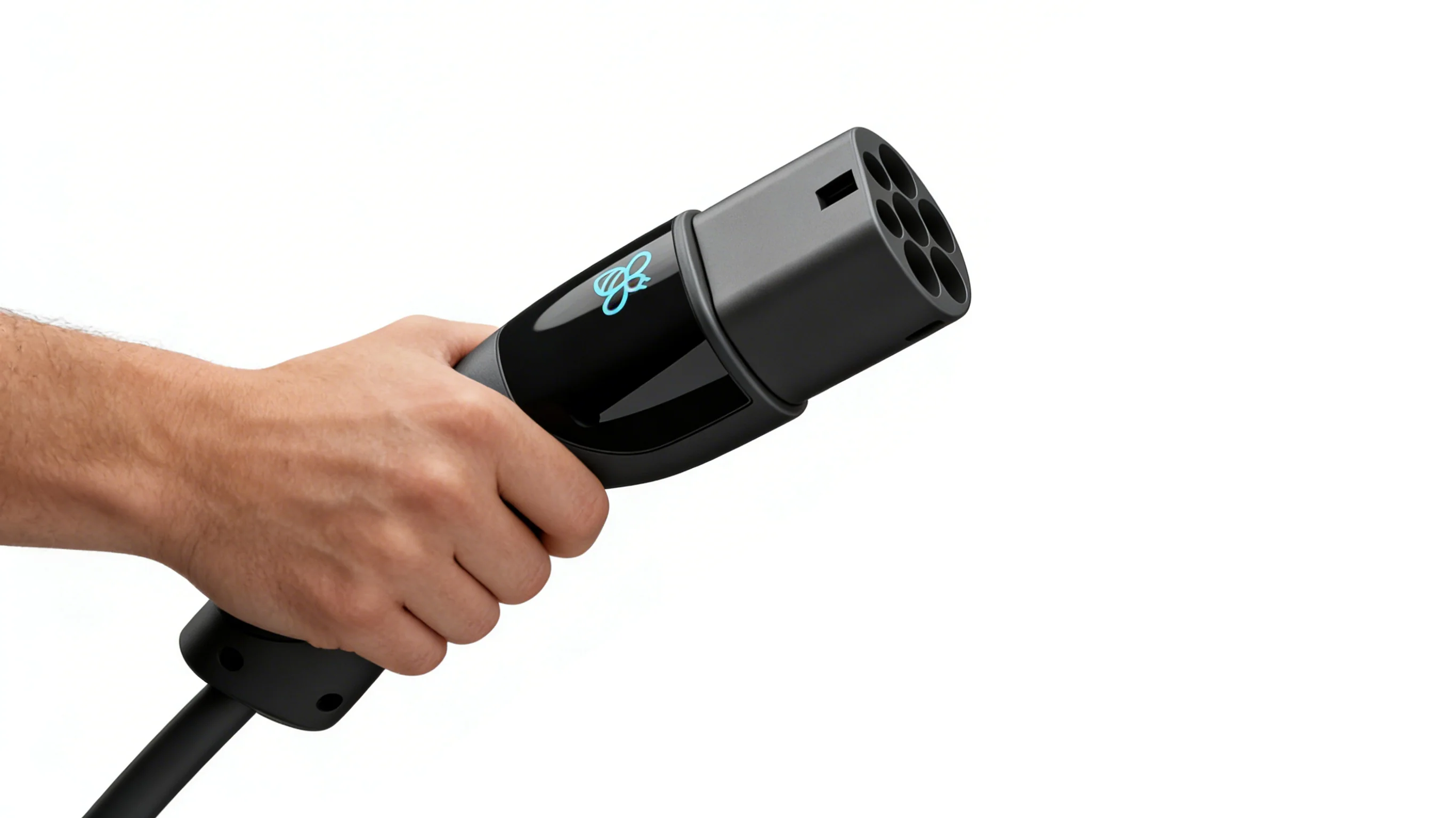

Bumblebee EV Type 2 to Type 2 Charging Cable – 10 Metres (7kW, 32A, Single Phase)
For maximum flexibility and convenience, the Bumblebee EV 10m Type 2 to Type 2 charging cable is the ultimate choice.
Delivering a steady 7kW at 32A single phase, it allows you to charge with ease, even when your vehicle is parked further from the charging point. Despite its longer length, it maintains excellent performance and durability thanks to its high-quality, weatherproof construction. Perfect for larger spaces or challenging layouts, this cable gives you complete freedom without compromise.
GENERAL
| Cable Specifications | 5*6 mm²+1*0.5 mm² |
| Cable O.D. | 16±0.5 mm |
| Cable Overall Length | Available in 5.0 m, 7.5 m and 10.0 m |
| Power Options | Available in 7.4 kW, 11 kW or 22 kW |
| Operating Temperature | -30 °C to +50 °C |
| Insulation Resistance | 500 MΩ (500V DC) |
| Contact Resistance | 5 mΩ Max. without wire |
| Insertion force | 100 N Max |
| Standard | EN 62196-2:201 |
PROTECTION
| Ingress Protection | IP54 (with protective cap) |
CHARGING
| Connector on vehicle side | Type 2 (IEC 62196-2) |
| Connector on infrastructure side | Type 2 Socket (IEC 62196-2) Electronic lock with permanent lock option |
| Rated Current | 6 A 1 phase to 32 A 3 phase |
| Maximum Output Current | 32 A |
| Rated Voltage | 480 V |
| Rated Frequency | 50 Hz |
| Withstanding Voltage | 2500V AC (50/60 Hz@1 min) between L.N.PE |
Registered by NAPIT and approved by both OZEV and Energy Savings Trust, the company was created to bring industry-leading customer service and support to the electric vehicle charging infrastructure market.
